Which HVLP Spray System is Best for You

MPX-30™ Mid-Pressure Compressor Spray Gun


Key Features:

  • Fuji Spray’s Mid-Pressure technology combines rapid application and higher transfer efficiency
  • 100% stainless steel fluid passages suitable for water-borne and solvent-based coatings
  • Perfect for any type of professional spray finishing
  • Optimized air cap design results in a soft spray pattern and outstanding atomization

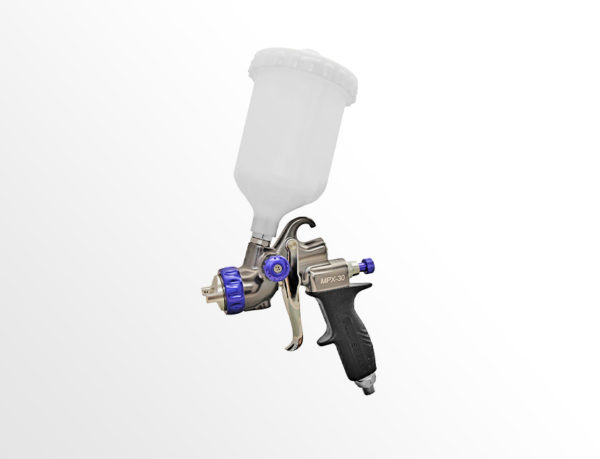

  • Gravity feed compressor spray gun is installed with 1.4mm

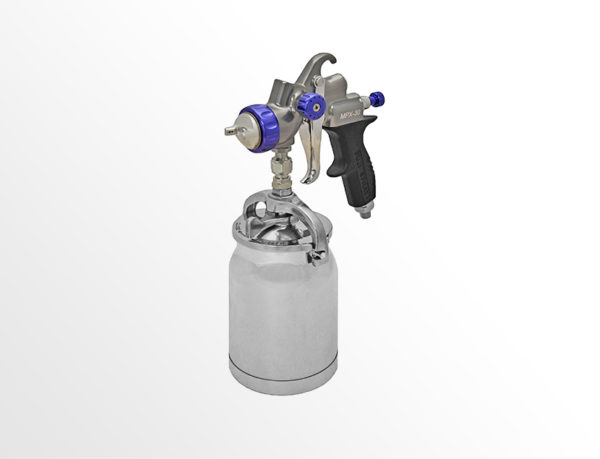

  • Siphon feed compressor spray gun is installed with 1.7mm
  • Precise side-mounted fan pattern control
  • Recommended 13.8cfm at 36 psi


  • Air Supply Pressure: 36 PSI at the gun inlet (2.5 bar)
  • Air Inlet Size: 1/4“ BSP and NPS
  • Air Supply Hose Width: 5/16” ID
  • Fluid Passages: Stainless Steel
  • Fluid Coupler (Siphon): 3/8” x 19P
  • Fluid Coupler (Gravity): M 16 x 1.5P
  • Air Consumption: 13.8cfm (390L/min)
  • Standard Air Cap Set (Siphon): 1.7mm
  • Standard Air Cap Set (Gravity): 1.4mm
  • Gun Weight (Without Cup): 503g
